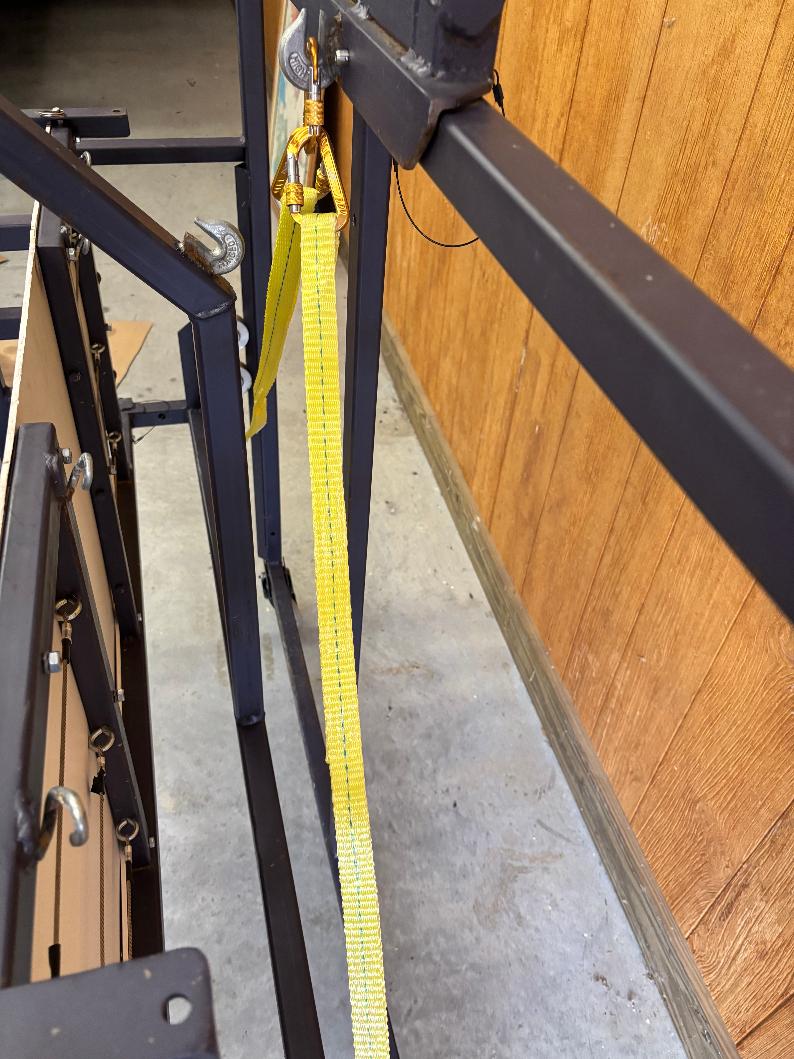

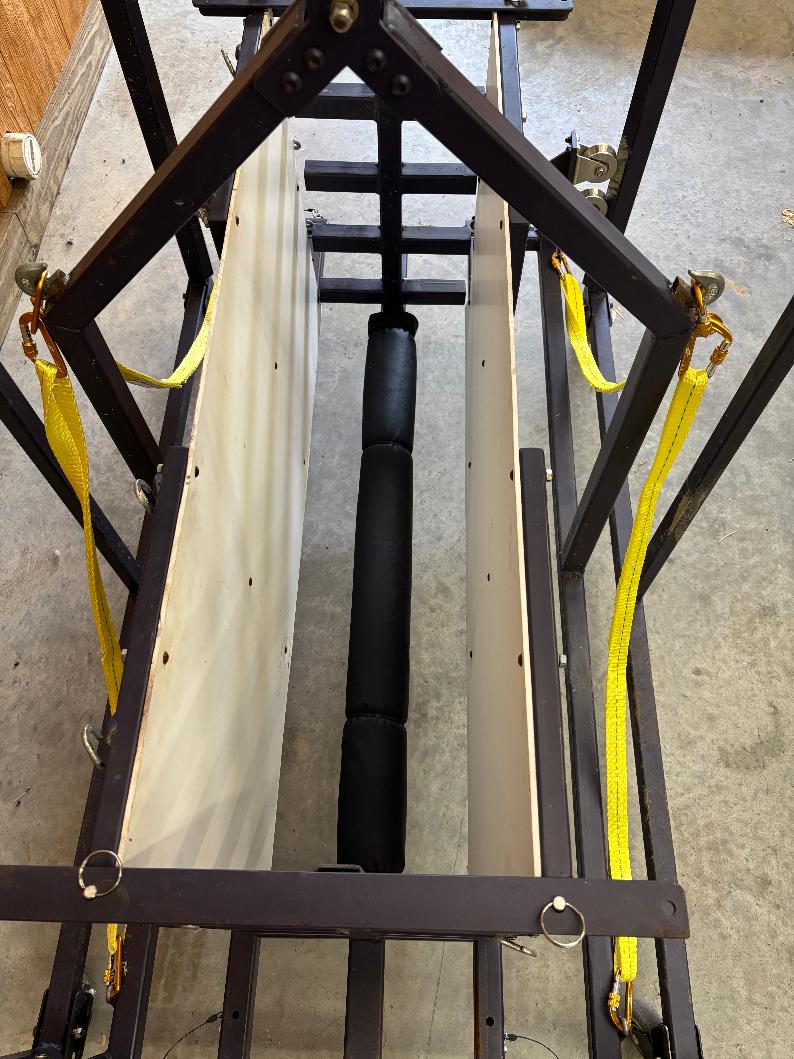

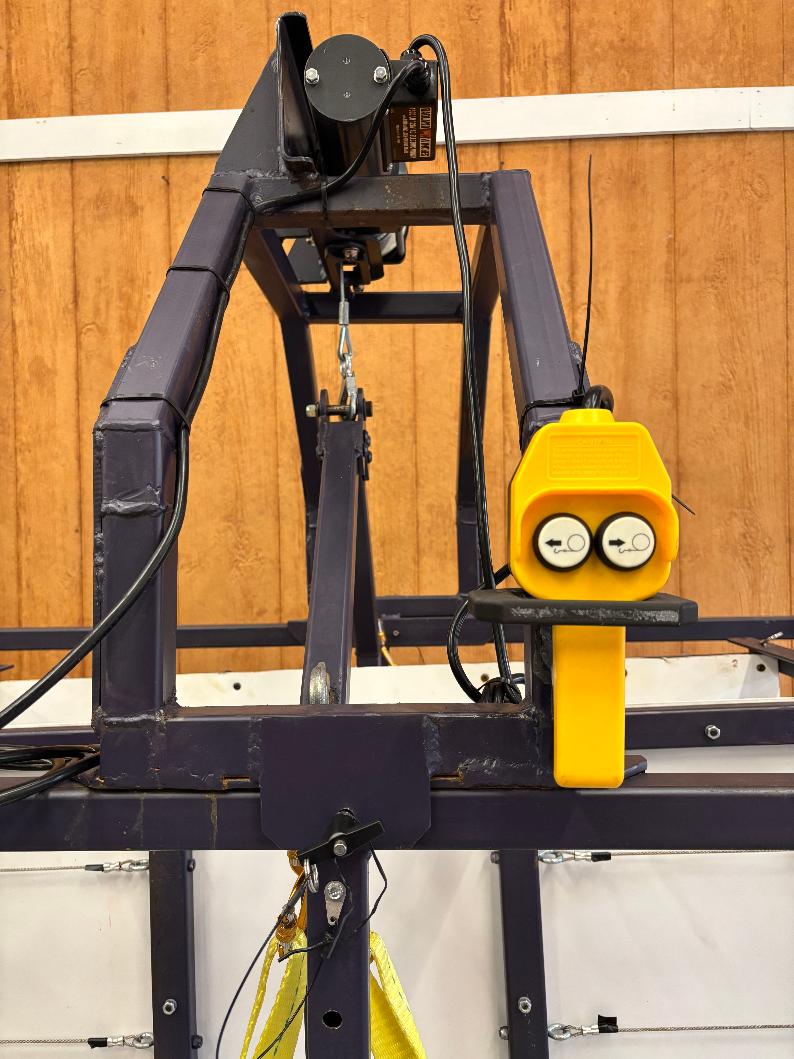

The Juniper Lift was designed for safety, ease of lifting pigs for hoof trimming and to be portable equipment. The lifting winch is rated at 1500lbs and is secured with a safety lockout system rated carabiners/webbing at 2697lbs/1600lbs. To load the pig remove the back door, after the pig walks in replace and lock the door. Lift the pig with the touch of a button. The pig's legs hang down through the open area and their body is safely resting on a heavily padded bar. Once the procedure is complete lower the device, remove the front door and the pig can walk right out onto the ground. The pig can be lifted up to 32" from the ground surface. The adjustable width for the pig is 14" or 20".
Lift Dimensions:
Height: 84" Width: 38" Length: 62"
